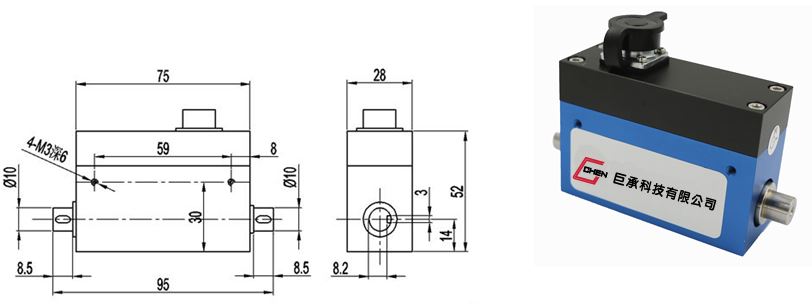

| 產品名稱 : 動態扭矩感測器 GIS-FA602C |
|
|
|
扭矩感測器
|
GIS-FA602C
|
|
額度量程Rated Capacity
|
0.1,0.2,0.3,0.5, 1,2,3,5Nm
|
|
精度等級Accuracy Class
|
A
|
|
額度輸出Rated Output
|
1.0~1.5 mv/V±20%
|
|
零點輸出Zero Balance
|
±1 % F.S
|
|
輸入電阻Input Resistance
|
350±10Ω
|
|
輸出電阻Output Resistance
|
350±10Ω
|
|
非線性誤差Linearlty Error
|
0.2%F.S.
|
|
重複性誤差Repeatability Error
|
0.1%F.S.
|
|
滯後誤差Hysteresis Error
|
0.2%F.S.
|
|
輸出溫度影響Temp.Effect on Output
|
±1%F.S./10℃ |
|
零點溫度影響Temp.Effect on Zero
|
±1%F.S./10℃
|
|
推薦激勵電壓Excitation,Recommended
|
≤12VDC
|
|
工作溫度範圍Operating Temp.Range
|
-10 －+60℃ |
|
安全過載範圍Safe Overload
|
120%F.S.
|
|
極限過載範圍Ultimate overload
|
150%F.S.
|
|
絕緣電阻Insulation Resistance
|
≥2000MΩ(50VDC)
|
|
電纜線長度Cable,Length
|
Ø 3m
|
|
|
|
