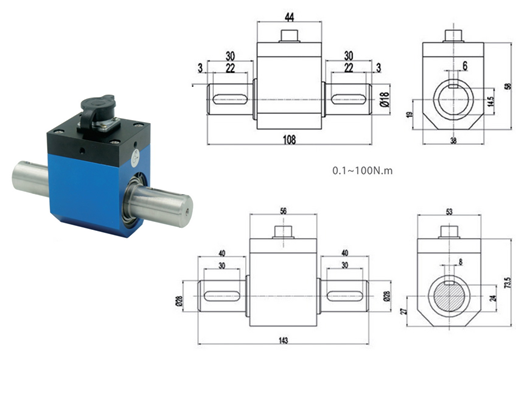

扭矩感測器

GIS-T908A

額度量程Rated Capacity

0.1,0.2,0.3,0.5,1,2,3,5,10,20,30,50,100,200,300,500 (N.m ）

精度等級Accuracy Class

A

額度輸出Rated Output

1.0~1.5 mv/V±20%

零點輸出Zero Balance

±1 % F.S

輸入電阻Input Resistance

350/700±10Ω

輸出電阻Output Resistance

350/700±10Ω

非線性誤差Linearlty Error

±1%RO

重複性誤差Repeatability Error

±1%RO

滯後誤差Hysteresis Error

±1%RO

2 分鐘蠕變Creep in 2 Min.

±1%RO

輸出溫度影響Temp.Effect on Output

±1%RO/10℃

零點溫度影響Temp.Effect on Zero

±2%RO/10℃

推薦激勵電壓Excitation,Recommended

≤12VDC

工作溫度範圍Operating Temp.Range

-10 －+40℃

安全過載範圍Safe Overload

120%RC

絕緣電阻Insulation Resistance

≥2000MΩ(50VDC)

電纜線長度Cable,Length

Ø 3m
