Mode. The software program also provides three automatic protocols: Automatic Method, Adaptive Method and Self-Control Method. The user also has control over the stimulus luminance, sweep rates and stimulus selection.
|
|

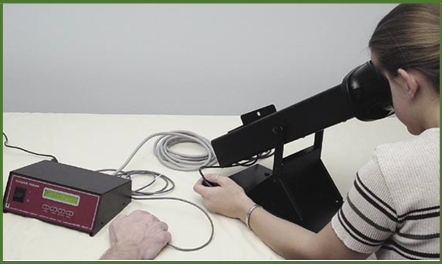

- Control Unit
- Viewing Chamber
- 12VDC Wall Mount AC Adapter
- DB9 Female to Female Cable
- DB15 Male to Female Cable
- Single Hand-Held Push Button
- Dual Hand-Held Push Button
- 1201A.EXE Software Program
The viewing chamber has two lights: one for the left eye and one for the right eye. The light compartments are completely separated, allowing for four stimulus combinations to occur: left eye only, right eye only,
left and right simultaneously, or left and right alternately. The viewing chamber is constructed to control extraneous factors, which might distort CFF values. The white electroluminescent lamps produce even lumination over a 0.5” diameter viewing area. The stimuli are separated by 2.75” (center to center) with a stimulus to eye distance of 15” and a viewing angle of 1.9°. The inside of the viewing chamber is painted flat black to minimize reflection.
|
