Features主要特點

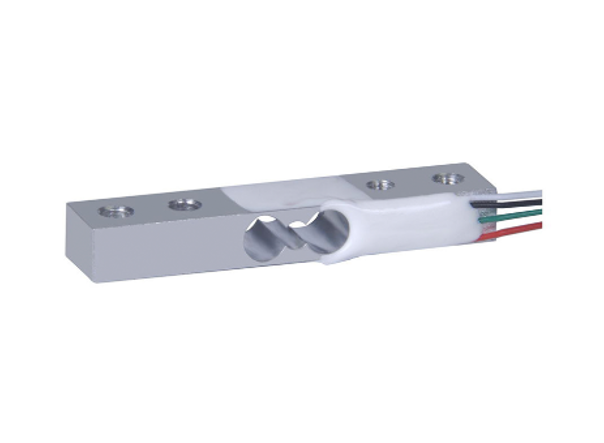

● Single point load cell
● Senior alloy steel
● High accuracy
● High stability
● Easy to install
● Protected against corrosion by nickelplated treatment
● High protection class
● Use in tough industrial environment
Capacities量程
● 150,300,500,700 g
Specification 技術參數
| 參數 |
Specifications |
技術指標/Technique |
| 額定容量 |
Capacity |
150,300,500,700 g |
| 輸出靈敏度 |
Rated output |
2.0±10%mV/V |
| 零點輸出 |
Zero balance |
±0.02mV/V |
| 非線性 |
Non-linearity |
≤0.05%F.S. |
| Hysteresis |
Hysteresis |
≤0.05%F.S. |
| 重複性 |
Repeatability |
≤0.05%F.S. |
| Creep |
Creep(30min) |
≤0.05%F.S. |
| 溫度靈敏度漂移 |
Temp.effect on output |
0.05%F.S./10℃ |
| 零點溫度漂移 |
Temp.effect on zero |
0.05%F.S./10℃ |
| 輸入電阻 |
Input impedance |
650/350±5Ω |
| 輸出電阻 |
Output impedance |
650/350±5Ω |
| 絕緣電阻 |
Insulation |
≥5000MΩ/100VDC |
| 工作電壓 |
Recommended excitation |
5V |
| 最大工作電壓 |
Maximum excitation |
15V |
| 溫度補償範圍 |
Compensated temp range |
-10~60℃ |
| 工作溫度範圍 |
Operation temp range |
-20~80℃ |
| 安全超載 |
Safe overload |
150%F.S. |
| 極限超載 |
Ultimate overload |
200%F.S. |
| 電纜線尺寸 |
Cable size |
φ2x3000mm |
|
