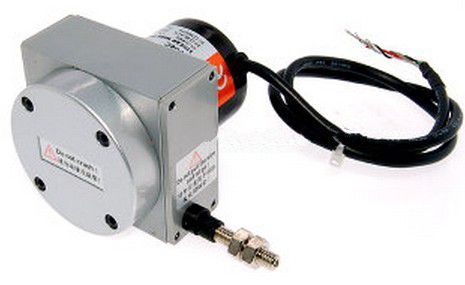

ELECTRICAL SPEC.
|
|
Detection System
|
Incremental
|
|
Output Wave
|
Square Wave
|
|
Stoke (mm)
|
200, 500, 1000
|
|
Standard Resolution (mm/pulse)
|
1, 0.5, 0.2, 0.1, 0.04 mm/pulse
|
|
Accuracy
|
±0.05% FS, ±1 count
|
|
Output Phase
|
AB phase or ABZ phase
|
|
Electronics
|
Voltage, Open Collector, Push Pull or Line Driver
|
|
Power Supply
|
DC 8~26V, DC 5V fixed
|
|
Current Consumption
|
≤ 60 mA
|
|
Output Capacity
|
Sync. Current: 20 mA, Residual Voltage: 0.5V or less
|
|
Max. Response
|
10K Hz ~ 50K Hz
|
|
Phase Different
|
A,B phase different 90°±45° (T/4±T/8), Z phase T±T/2
|
|
Wave Form Rise / Fall
|
2 μs or less
|
|
Polarity
|
Against Reverse Protection (Except Line Driver, Line Driver Except)
|
|

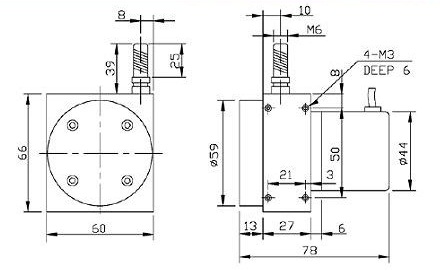

MECHANICAL SPEC.
|
|
Wire Specification
|
Material: SUS304 with nylon coating
Diameter: 0.6 mm; Breaking load: 16 kg
|
|
Max. Travel Speed
|
1,000 mm / sec.
|
|
Vibration
|
10g (10±1,500 Hz)
|
|
Shock
|
20g per 11 ms
|
|
Cable
|
Ø4.5, 50 cm long
|
|
Weight
|
< 450g
|
|
Starting Torque on Spring
|
Max. 700 g
|
|
ENVIRONMENTAL SPEC.
|
|
Operating Temp. / Humidity
|
0°C ~ 60°C, RH 35% ~ 90% (No Condensation)
|
|
Storage Temp.
|
-20°C ~ 80°C
|
|
Protection
|
IP50: Dust Proof (only for encoder housing)
|
|
Life
|
Typical > 1 X 106cycles
|
|
|
|
